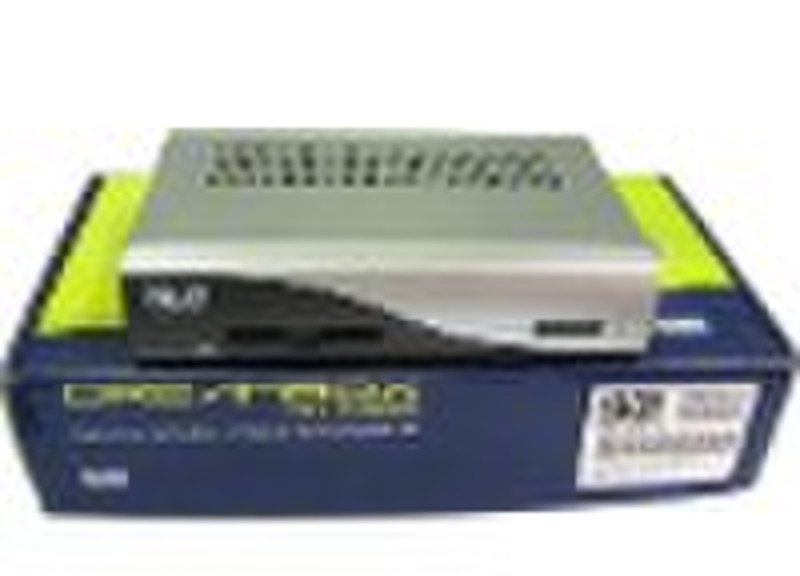

dreambox dm500s

dreambox dm500s Feature: 250 MHz PowerPC Processor Linux Operating System 2 LED status MPEG-2 Hardware decoding, DVB-S 1 x Smartcard-Reader (Dreamcrypt CA) 1 x Scart-interfaces (RGB, FBAS or S-Video) V.24/RS232 Interface 10/100Mbit compatible Ethernet Interface analog modem S/PDIF Interface for digital bit stream out (AC-3) 32 MByte Flash, 96 MByte RAM unlimited channel lists for TV/Radio channel-change time < 1 second automatic service scan directly bouquet-lists EPG (electronic program guide) Videotext Decoder multiple LNB-Switching control (DiSEqC) OSD in many languages and skin-support external12V power supply Technical Data: Video parameter: Input Level FBAS 1 Vss +/- 0.3 dB on 75 Ohm Teletext filter in conformity with ETS 300 472 Standard TV-Scart: Output: FBAS, RGB, S-Video Serielle Interface RS 232: Typ RS232 bidirectional Bitrate 115,2 kBit/s max. Plug Connector SUB-D-9 Function: Update of Firmware Ethernet: 10/100 MBit compatible interface Function: Update of Firmware LNB Power and polarisation: LNB Current 500mA max. ; short-circuit-protected LNB Voltage vertical < 14V no load, > 11,5V at 400mA LNB Voltage horizontal < 20V no load, > 17,3V at 400mA LNB shut-off at Standby-Mode Count of active satellite position: DiSEqC 1.0/1.1/1.2 and USALS (Rotor Control) Power consumption: < 10W / 12V Input voltage: DC12V +/- 15% Extern power supply: Input: 110-240V AC / 50-60Hz / 0,6A Output: 12V = / 1A or 2A Physical specification: Ambient Temperature +15°C...+35°C Humidity < 80% Size (W x D x H): 195 mm x 130 mm x 40 mm Weight: 0,6 kg External power supply: Input: 110-240V AC / 50-60Hz / 0,6A Output: 12V = / 1A or 2A Physical specification: Ambient Temperature +15°C...+35°C Humidity < 80% Size (W x D x H): 195 mm x 130 mm x 40 mm -------------------------------------------------------------------------- Contact :Mabel Ma Direct Line:+86-755-82154956 Mobile Phone:+86-755-136-32756323
